Base class for diana modules. More...

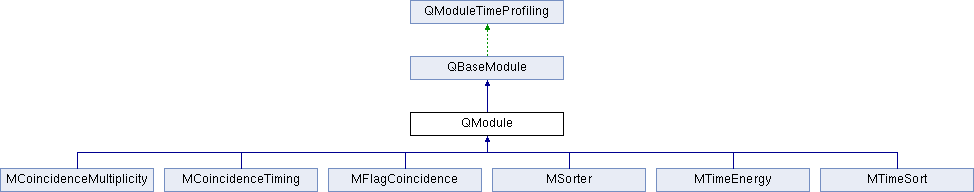

Inheritance diagram for QModule:

Public Member Functions
	QModule ()
	constuctor More...

virtual	~QModule ()
	destructor More...

virtual void	Init (QEvent &ev)=0
	Init method is called before event loop. More...

virtual void	Do (QEvent &ev)
	Do method is called on each event, getting the event as argument. More...

virtual void	Do (QEvent &ev, const QEventList &neighbours)
	Do method is called on each event, getting the event and its neighbours as argument. More...

virtual void	Done ()=0
	Done method is called after event loop. More...

Public Member Functions inherited from QBaseModule
	QBaseModule (Type type)
	constructor More...

virtual	~QBaseModule ()
	constructor More...

double	GetDouble (const std::string &parname, double defVal, bool warnCfg=true) const
	Get a double parameter from config file. More...

std::vector< double >	GetVectorDouble (const std::string &parname, std::vector< double > defVal, bool warnCfg=true) const
	Get a std::vector<double> parameter from config file with syntax "{x,y,z}". More...

int	GetInt (const std::string &parname, int defVal, bool warnCfg=true) const
	Get an int parameter from config file ( see GetDouble() ) More...

std::vector< int >	GetVectorInt (const std::string &parname, std::vector< int > defVal, bool warnCfg=true) const
	Get an vector<int> parameter from config file ( see GetVectorDouble() ) More...

bool	GetBool (const std::string &parname, bool defVal, bool warnCfg=true) const
	Get a bool parameter from config file ( see GetDouble() ) More...

std::vector< bool >	GetVectorBool (const std::string &parname, std::vector< bool > defVal, bool warnCfg=true) const
	Get a vector<bool> parameter from config file ( see GetVectorDouble() ) More...

const std::string &	GetString (const std::string &parname, const std::string &defVal, bool warnCfg=true) const
	Get a string parameter from config file ( see GetDouble() ) More...

std::vector< std::string >	GetVectorString (const std::string &parname, std::vector< std::string > defVal, bool warnCfg=true) const
	Get a vector<string> parameter from config file ( see GetVectorDouble() ) More...

void	Debug (const char *descr,...) const
	Send a debug message (used to debug the module) with printf syntax. More...

void	Info (const char *descr,...) const
	Send an info message (information) with printf syntax. More...

void	Warn (const char *descr,...) const
	Send a warning message (an error that the framework can recover) with printf syntax. More...

void	Error (const char *descr,...) const
	Send an error message (an error that the framework cannot recover) with printf syntax. More...

void	Panic (const char *descr,...) const
	Send a panic message (stops the framework) with printf syntax. More...

const QGlobalDataManager &	GlobalData () const
	interface for saving and loading global QObjects More...

bool	GetRunAgain () const
	Check if the sequence will be reiterated. More...

void	SetRunAgain (bool b)
	Set that the sequence will be reiterated. More...

unsigned int	GetIteration () const
	Get Current sequence iteration. More...

unsigned int	GetOccurrence () const
	get the number of times the same module is loaded inside a QSequence More...

bool	isEnabled () const
	check if module is enabled More...

std::string	GetFullPath () const
	Get Full Path of module "GetName() + "." + GetOccurrence". More...

const std::string &	GetName () const
	Get Module name. More...

const std::string &	GetLabel () const
	Get Module name + the optional ExtraLabel ("name_extralabel") More...

MsgLevel	GetVerbosity ()
	get verbosity level set from config file More...

const QSequence &	GetSequence () const
	get reference to this sequence More...

void	Update (QSequence *s, unsigned int occurrence)
	set the occurrence in the same sequence. MV FIXME: should not be public More...

bool	NeedNeighbours ()
	check wheter this module needs neighbours (available after the first event is processed) More...

void	BeginBase (QEventAssembler &ev)
	Begin Base method is called before event loop. More...

bool	ProcessBase (QEventAssembler &ev, QEventList &evl, const bool exec, QEventList &ovl)
	ProcessBase method is called for each event, getting the event and as argument. More...

void	EndBase ()
	EndBase method is called after event loop. More...

const std::vector< QEventLabel > &	GetRequiredLabels () const
	Get labels of objects required by this module. More...

Private Member Functions
void	Begin (QEventAssembler &eva)
	Begin method is called before event loop, and calls Init() More...

bool	Process (QEventAssembler &eva, QEventList &neigh, const bool exec, QEventList &oneigh)
	Process method is called for each event, and calls Do() More...

void	End ()
	End method is called after event loop, and calls Done() More...

Private Attributes
bool	fSkipEvents
	flag to skip the Do() execution on filtered events More...

bool	fSkipRequiredNotValid
	Skip events containing non-valid required objects. More...

bool	fFirstCall
	flag to check first Do() call More...

size_t	fRunOnIteration
	Specify on which iteration the module runs. More...

Additional Inherited Members
Public Types inherited from QBaseModule
enum	Type { Module , Filter , Reader , Writer , Driver }

Protected Member Functions inherited from QBaseModule
QModuleConfig &	GetConfig ()
	Get module config. More...

void	SetNeedNeighbours (bool need)
	set wheter this module needs neighbours More...

Protected Member Functions inherited from QModuleTimeProfiling
	QModuleTimeProfiling ()
	ctor initialized internal variables More...

virtual	~QModuleTimeProfiling ()
	dtor does nothing More...

void	SetTimeProfilingOn (bool val)
	Set the time profiling on/off. More...

bool	GetTimeProfilingOn () const
	Check if the time profiling is on. More...

void	ResetTimer ()
	Reset the timer to now. More...

double	GetTimer () const
	return the time since the last reset More...

virtual void	StartProcessCall ()
	Start of a process call. More...

virtual void	EndProcessCall ()
	End a process call and increment time and calls. More...

unsigned long long	GetProcessCalls () const
	Return the total number of process calls. More...

double	GetTotalProcessTime () const
	Return the total processing time. More...

double	GetProcessCallTime () const
	Return the average time of a single process call. More...

std::string	GetTimeProfileReport (const std::string &prefix="") const
	Report the time profiling. More...

Protected Attributes inherited from QBaseModule
bool	fExecuted

Protected Attributes inherited from QModuleTimeProfiling
bool	fTimeProfilingOn
	Report the time profiling. More...

unsigned long long int	fProcessCalls
	NUmber of calls to the process. More...

double	fProcessTime
	Total time spent running the process. More...

Detailed Description

Base class for diana modules.

Author: Marco Vignati

QModule is the base class for modules that really do something inside this framework full of meaningless C++ layers. QModules compute analysis quantities and increase our understanding of Physics (maybe).

This class defines the following config file parameters (see QBaseModule for inherited parameters)

Optional Parameters:
- SkipEvents[bool = true]: if true the Do() will not be executed on events that do not pass the filters, if false the Do() will be executed on all the events.
- SkipRequiredNotValid [bool = false]: if true the Do() will not be executed on events that contains non-valid QObjects required by this module
Inheriting modules must implement the Init() method, called before the QEvent loop, the Do() method, called on each QEvent, and the Done() method, called at the end of the QEvent loop. In the Init() method, the module should fetch config file variables through the QBaseModule inherited methods, and add QObejct (s) to the QEvent (see QEvent). In the Do() method, the module reads the QEvent and sets its QObject(s). In the Done() method, the module finalizes its operations. In all the three methods the module can get/set global quantities getting the QGlobalDataManager instance of Diana, using the GlobalData() method inherited from QBaseModule. Two kind of Do() methods exists, one that reads and writes the current event [Do(QEvent& ev)], and one that reads also the neighbour events [Do(QEvent& ev, const QEventList& neighbours)]. Users can implement only one of the two, depending if the module needs to read neighbours events or not.

If the option SkipEvents is set to false, the Do() will be executed on all the events, the result of the filters is anyhow stored (but not written in output files) in the "SkipEvent" QBool owned by the module. To check this variable:
```
 bool skipEvent = ev.Get<QBool>("SkipEvent");

```
If the option SkipRequiredNotValid is set to true, the Do() will be executed only on events with valid required objets The result of this selection is anyhow stored (but not written in output files) in the "SkipRequiredNotValid" QBool owned by the module. To check this variable:
```
 bool skipRequiredNotValid = ev.Get<QBool>("SkipRequiredNotValid");

```
This option does not act on neighbours. To remove from neighbours events with non-valid QObjects use the filter MRejectNotValid

Definition at line 54 of file QModule.hh.

Constructor & Destructor Documentation

◆ QModule()

Q_BEGIN_NAMESPACE QModule::QModule ( )

constuctor

Definition at line 7 of file QModule.cc.

◆ ~QModule()

QModule::~QModule ( )

virtual

destructor

Definition at line 11 of file QModule.cc.

Member Function Documentation

◆ Begin()

void QModule::Begin ( QEventAssembler & eva )

privatevirtual

Begin method is called before event loop, and calls Init()

Implements QBaseModule.

Definition at line 15 of file QModule.cc.

References QEvent::Add(), QBaseModule::Debug(), fFirstCall, fRunOnIteration, fSkipEvents, fSkipRequiredNotValid, QBaseModule::GetBool(), QEventAssembler::GetEvent(), QBaseModule::GetInt(), QBaseModule::GetIteration(), QBaseModule::Info(), Init(), QBaseModule::Panic(), and QBaseModule::SetNeedNeighbours().

◆ Do() [1/2]

void QModule::Do ( QEvent & ev )

virtual

Do method is called on each event, getting the event as argument.

Definition at line 71 of file QModule.cc.

References QBaseModule::Panic().

Referenced by Do(), and Process().

◆ Do() [2/2]

void QModule::Do	(	QEvent &	ev,
		const QEventList &	neighbours
	)

virtual

Do method is called on each event, getting the event and its neighbours as argument.

Definition at line 77 of file QModule.cc.

References Do(), fFirstCall, and QBaseModule::SetNeedNeighbours().

◆ Done()

virtual void QModule::Done ( )

pure virtual

Done method is called after event loop.

Implemented in MTimeSort, MTimeEnergy, MSorter, MFlagCoincidence, MCoincidenceTiming, MCoincidenceMultiplicity, MTimeSort, MCoincidenceMultiplicity, and MTimeSort.

Referenced by End().

◆ End()

void QModule::End ( )

privatevirtual

End method is called after event loop, and calls Done()

Implements QBaseModule.

Definition at line 87 of file QModule.cc.

References Done(), fRunOnIteration, QBaseModule::GetIteration(), and QBaseModule::SetRunAgain().

◆ Init()

virtual void QModule::Init ( QEvent & ev )

pure virtual

Init method is called before event loop.

Referenced by Begin().

◆ Process()

bool QModule::Process	(	QEventAssembler &	eva,
		QEventList &	neigh,
		const bool	exec,
		QEventList &	oneigh
	)

privatevirtual

Process method is called for each event, and calls Do()

Implements QBaseModule.

Definition at line 39 of file QModule.cc.

References Do(), QBaseModule::fExecuted, QBaseModule::fLabel, fRunOnIteration, fSkipEvents, fSkipRequiredNotValid, QEvent::Get(), QEventAssembler::GetEvent(), QBaseModule::GetIteration(), QBaseModule::GetRequiredLabels(), and rHandle.

Member Data Documentation

◆ fFirstCall

bool QModule::fFirstCall

private

flag to check first Do() call

Definition at line 92 of file QModule.hh.

Referenced by Begin(), and Do().

◆ fRunOnIteration

size_t QModule::fRunOnIteration

private

Specify on which iteration the module runs.

Definition at line 95 of file QModule.hh.

Referenced by Begin(), End(), and Process().

◆ fSkipEvents

bool QModule::fSkipEvents

private

flag to skip the Do() execution on filtered events

Definition at line 86 of file QModule.hh.

Referenced by Begin(), and Process().

◆ fSkipRequiredNotValid

bool QModule::fSkipRequiredNotValid

private

Skip events containing non-valid required objects.

Definition at line 89 of file QModule.hh.

Referenced by Begin(), and Process().

The documentation for this class was generated from the following files:

pkg/dianaframework/QModule.hh
pkg/dianaframework/QModule.cc
